Why Cryogenic Ball Valve Design Is Important

What Is a Cryogenic Ball Valve

In many industrial and laboratory systems, controlling extremely cold liquids requires equipment built for the conditions. A cryogenic ball valve is one such device. Unlike standard valves, it is designed to handle fluids that remain liquid only at very low temperatures, such as liquefied natural gas, liquid nitrogen, liquid oxygen, and liquid argon. These substances can be difficult to manage because ordinary valves may fail when seals harden or metals contract in the cold.

A cryogenic ball valve is a quarter-turn valve. Its main component is a spherical ball with a hole in the middle. When the hole aligns with the pipeline, liquid passes through freely. Turning the ball 90 degrees blocks the flow entirely. This simple mechanism provides reliable shutoff and allows for rapid control, which is crucial in low temperature systems, where safety and accuracy are crucial.

Design Features That Matter

Several characteristics of cryogenic valves distinguish them from standard valves. These are not just technical details — they are essential to the operation of the valve under extreme conditions:

• Sealing Materials: Ordinary materials may become brittle in cold weather. The low-temperature valve is made of a special compound, which keeps it flexible and tightly sealed.

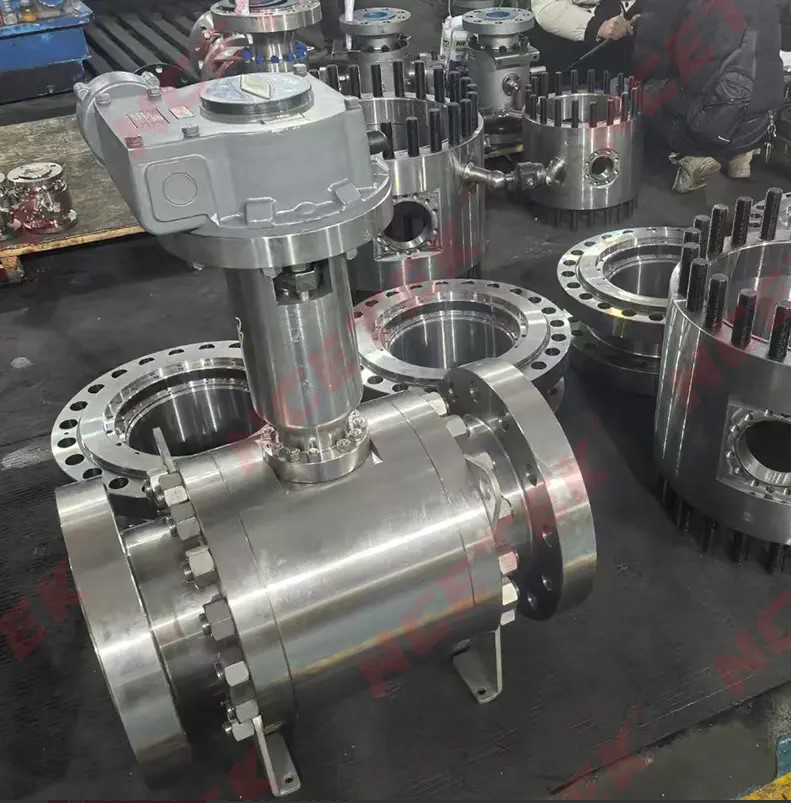

• Stem Design: The stem links the handle or actuator to the inner ball. In low-temperature valves, it is often extended to minimize the heat transfer from the user, and this helps to prevent the accumulation of frost or ice.
• Thermal Movement: Low-temperature contraction of metals. The valve is designed to accommodate such variations, so that the ball is smooth and does not bind.
• Durable Body: Stainless steel or other alloys are resistant to cracking and corrosion, which is of great importance as some low temperature fluids may react.

Common Types

Low temperature ball valves come in a variety of configurations depending on how they are used. The main types include:

• Floating Ball Valve: The ball is held in position by the seal itself and can be moved slightly to keep a tight seal even in the event of changes in pressure.
• Trunnion-Mounted Valve: The top and bottom of the ball are supported to reduce the pressure on the seals. This is common in larger systems or those with higher pressures.
• V-Port Valve: The ball has a V shape, allowing for more accurate flow control instead of simply turning on/off.

These types are chosen based on the system's size, pressure, and the need for flow regulation.

How They Differ from Standard Valves

At first glance, the low temperature valve is very similar to the ordinary ball valve. However, it is made to withstand conditions where normal valves would fail. Standard valves can break, leak, or catch at very low temperatures. Low temperature valves use materials and design characteristics to preserve their performance in extreme cold, for example, long stems, special packaging, and insulation to prevent freezing.

Typical Applications

Cryogenic ball valves are used in a variety of industries:

• LNG Storage and Transport: Control of LNG's flow during storage, loading, or unloading.
• Industrial Gas Facilities: Managing liquid oxygen, nitrogen, or argon for manufacturing, welding, or medical purposes.
• Research Laboratories: In experiments, handling extremely cold liquids while maintaining the stability and safety of the flow.
• Food and Pharmaceutical Processing: Some processes rely on cryogenic liquids for cooling or preservation, where precise control is necessary.

Care and Maintenance

Even though these valves are designed for harsh conditions, proper handling helps keep them operating well:

• Check seals and stems regularly for wear.
• Use lubricants suitable for low temperatures to avoid sticking.
• Install the valve correctly, ensuring alignment and support.
• Follow safety procedures carefully when dealing with reactive or flammable liquids.

Regular attention can extend the life of the valve and maintain safety in sensitive systems.

How Low Temperatures Affect Valve Performance

When valves are used with very cold liquids, like liquid nitrogen or LNG, they face challenges that normal valves don't. Even simple actions, such as opening and closing the valve, may not behave in the same way as anticipated. Understanding the effects of the cold on the valve will help to ensure the safety and smooth operation of the system.

Materials and Seals

At very low temperatures, metals shrink slightly. This can make moving parts feel stiff or harder to turn. As time goes by, the repeated contraction and expansion of the valve components will be stressed. That's why cryogenic valves are made of metal that can withstand the cold without cracking or deforming.

Seals are another key point. Ordinary rubber or plastic seals get hard in cold, which can cause leaks. Cryogenic valves use special materials that stay soft enough to keep a tight seal even when temperatures drop. This prevents fluid from escaping and keeps the system safe.

Turning the Valve

A valve might feel different in the cold. What was easy to turn at room temperature can become stiff when the valve is cold. The operator must carefully rotate the valve so as not to force it. In some cases, the valves remain open for a period of time, and frost may accumulate on the handle or stem. Frost makes it more slippery and difficult to operate, so some valves have a longer stem or insulation to prevent frost from coming into contact with it.

How the Fluid Flows

Cryogenic liquids behave differently from normal liquids. They are often lighter and can form gas bubbles easily. A valve not designed for this can create uneven flow or pressure changes. Over time, this may cause small internal damages. Valves for cryogenic use are shaped and supported so the fluid moves smoothly. Some designs allow gradual adjustment instead of just fully open or fully closed, which is helpful in delicate processes.

Thermal Stress

Repeated heating and cooling can stress valve parts. Materials expand when warmed and shrink when cooled. If the valve isn't built for this, seals may wear out or parts may misalign. Some cryogenic valves have a floating seat that allows the ball to move a bit so that it remains sealed even when the material is changed. Larger valves sometimes use additional supports called trunnions to keep the ball stable and reduce stress.

Safety Considerations

Working with extremely cold liquids can be dangerous. Even a tiny leak can freeze a nearby surface or cause a pressure hazard. Frost on stems or handles can make manual operation tricky. Designers address these issues by adding insulation, extended stems, and sturdy supports to keep valves safe and easy to operate.

Keeping Valves in Good Condition

Maintaining valves in cryogenic systems is not difficult, but it needs attention:

• Inspect seals and stems regularly for wear or frost buildup.
• Use lubricants that work in cold temperatures to avoid sticking.
• Make sure the valve turns smoothly during operation.
• Check flow patterns for unusual changes that may signal wear or blockage.

These simple steps help valves last longer and perform reliably.

Environment Matters

Where the valve is located also affects performance. Outdoor valves can face wind, humidity, and ice, which may increase frost or corrosion. Vibration from nearby machines can add stress. Designers often protect valves with covers, insulation, or special mounting to keep them stable and safe.

Inside a system, placement matters too. Valves should be accessible for operation and maintenance. Automated valves may need actuators that can handle the extra resistance caused by cold without overloading.

Typical Applications in Cryogenic Systems

A low-temperature ball valve is used in many systems for handling extremely cold liquids. They are essential in industries from gas production to medical labs and food processing. Valves help to safely control the flow, prevent leakage, and allow the operator to isolate or control a portion of the system.

1. Industrial Gas Plants

In gas plants, cryogenic liquids like oxygen, nitrogen, and argon are stored in tanks and moved through pipelines. The valve shall be installed in positions where the fluid must be controlled, isolated, or directed.

Key uses include:

• Controlling flow from storage tanks to processing units
• Isolating sections of pipelines for maintenance
• Managing pressure and preventing leaks

Reason: Operators depend on the smooth opening of the valves and the reliable sealing. Even minor leakage or improper flow can cause frost, pressure change, or safety risks.

2. LNG Terminals

LNG has to be stored at very low temperatures. Low-temperature valves regulate the flow between storage tanks, transfer lines, and loading facilities.

Points to consider:

• Valves avoid sudden changes in pressure during transmission
• Pipeline sections can be safely isolated for inspection
• Valves must be reliable under vibration, cold, and high-flow conditions

Tip for the operator: Check the valves periodically to ensure that the stem and handle are free from frost, so that the operation can continue smoothly.

3. Research and Laboratories

Cryogenic liquids are widely used in laboratories for experiments that require very low temperatures. Examples include superconducting research, chemical experiments, or cooling devices.

Key points:

• Valves control how much liquid enters cooling baths or cryostats
• Smooth and precise operation is critical
• Leaks or irregular flow can disrupt experiments

Operator checklist:

• Check seals before each use
• Ensure frost does not block handles or actuators
• Use valves designed for repeated, low-temperature operation

4. Medical and Pharmaceutical Applications

Hospitals and pharmaceutical laboratories use liquid oxygen or nitrogen for storage, equipment, and sample preservation.

Key points:

• Valves ensure safe and controlled delivery
• Smooth operation is critical for staff handling
• Tight seals prevent leaks that could harm patients or damage samples

5. Food Processing and Cold Storage

Liquid nitrogen is used in some food operations to freeze or cool products quickly. Valves assist in regulating the flow into freezers or pipelines.

Key points:

• Precise control ensures consistent product quality
• Reliable operation reduces frost or equipment damage
• Valves must handle repeated use without leaks

Note: Ensure easy access and insulation of the valve to prevent freezing.

6. Transport and Storage Systems

Cryogenic fluids are transported through pipes, trucks, or storage tanks. Valves are used to isolate sections, control flow, and prevent pressure surges.

Key points:

• Smooth operation is essential even under vibration or movement
• Insulation and extended stems help keep parts frost-free
• Multiple valves in a system allow flexibility and safe maintenance

Environmental tips: Outdoor or mobile systems require protective housings or covers to shield valves from wind, moisture, or debris.

Some Practical Tips Across Applications

• Always check the seal and stem for wear or frost
• Use lubricants appropriate for very low temperatures
• Install valves where they are easily accessible for use and maintenance

Select the correct type of valve for the system:

• Floating Ball for isolation
• Trunnion for smooth flow
• V-Port for gradual control

Why Choose Naishi Cryogenic Ball Valve Design

Looking at the application of low temperature ball valves in all sectors -- from industrial gas plants to labs, hospitals, LNG systems to food processing -- it is obvious that not all valves are built in the same way. Selecting a reliable valve at very low temperatures will save time, reduce maintenance costs, and make the operation more secure.

Naishi's cryogenic ball valves are designed to address common challenges in these systems. Their valves handle low temperatures without freezing or losing seal integrity. Easy to operate, so that the operator can easily open the valve even if he is wearing gloves or working in a cold environment.

Key points to consider:

• Reliable Sealing: Materials are selected to maintain flexibility at low temperatures, preventing leaks and frost formation.
• Smooth Operation: Stem and handle designs make opening and closing easier, reducing strain on operators.
• Versatility: Suitable for a range of applications, from storage tanks and pipelines to laboratory equipment and transport systems.
• Durability: Built to withstand repeated thermal cycling and operational stress, keeping systems running consistently.

In practice, the use of Naishi's low temperature ball valve means that the operator can concentrate on the management of his process instead of worrying about the performance of the valve. The proper design of the valve improves the control, reduces the down time, and supports the safe operation of all kinds of cryogenic systems.

The choice of valves that are designed with these considerations in mind for anyone dealing with cold fluids makes day-to-day operations easier and more reliable. The Naishi Low Temperature Ball Valves provide the consistency required in an environment that is constantly concerned with temperature, pressure, and security.
