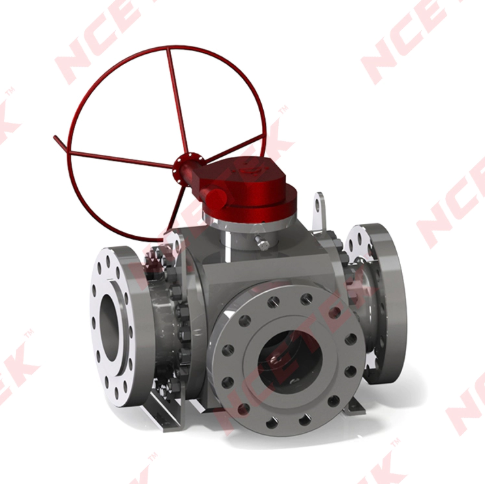

How to Maintain Stem Safety in Cryogenic Ball Valve Design

When temperatures plummet to −196°C in cryogenic service, valve components—both metal and polymer—behave way differently than they do at room temp. Metals tend to turn brittle, while polymers shrink noticeably. That's why you've got to nail stress-strain analysis during design, keep manufacturing precision tight, and stay on top of proactive maintenance day-to-day. Only then can you trust the valve to hold up through endless on-off cycles and years of steady use.Cryogenic Ball Valve Design must prioritize these unique low-temperature challenges to ensure long-term operational safety.

1. PCTFE Seat Sealing Pressure Variations and Compensation Solutions at −196°C

PCTFE seats shrink a lot when hit with cryogenic temps, and that directly cuts down the contact force between the seat and ball—bad news for sealing. Skip targeted fixes, and you'll end up with small headaches like leaks or fast seat wear, or worse: after repeated valve cycles, the seat surface gets uneven stress, which is a safety risk waiting to happen. The fix? Mix structural compensation with material tweaks. Go-to moves include adding elastic compensation rings, building in preloading setups, using multi-contact sealing faces, and throwing in reinforced back supports—all to keep that seal tight.

Take elastic compensation rings, for example—they kick in extra radial force as temps drop, keeping seat and ball locked together. Multi-contact setups spread stress across several surfaces, so no single spot takes too much heat and wears out slower. Back supports keep the seat steady, stopping permanent warping when temps swing and pressure spikes. And preloading systems hold that initial contact pressure, so the seal stays reliable even after ages in the cold.

2. Controlling Weld Heat-Affected Zone Brittleness and Responding to Cryogenic Shock

Valve body welds are weak spots in the cold. The heat-affected zone (HAZ) gets weird microstructural changes, and residual stress is all over the place. Don't fix that, and you'll see cracks when there's a thermal shock or pressure suddenly jumps. So design needs clear welding rules: turn down heat input, use segmented weld passes, tweak groove shapes, and if needed, do post-weld stress relief to get toughness and ductility back.

You also need to dial in groove angles, weld width, and welding order—this cuts down local stress hotspots and makes the weld tougher in the cold. Before shipping the valve, you can't skip non-destructive testing (NDT): ultrasonic checks, X-rays, magnetic particle inspections—all to find hidden flaws. Pick filler metal that plays nice with the base material, and keep thermal cycles in check. Do that, and the valve body stays ductile and impact-resistant even when it's freezing.

3. Stem Blow-Out Prevention Design Under Cryogenic Conditions

The stem, valve body, and actuator shrink at different rates in the cold—that loosens their mechanical fit. Worst case? The stem pops out or gets stuck when turning. To stop that, cryogenic ball valves use a bunch of anti-blowout tricks: mechanical locks, beefed-up threads, safety retainers, and composite sealing washers. These parts make sure the stem stays locked tight whether it's fully open or closed, keep torque spread evenly, and protect threads and seals from getting damaged by local stress.

In real-world use, you'll also add extras like shoulder stops, elastic retainers, and precision collars. These boost stem stability, so even after cycle after cycle of shrinking and expanding, the valve keeps running reliably—and you don't have to fix it as often.

4. Integrated Optimization of Materials and Structure

How well a cryogenic ball valve works comes down to how metal parts, polymer parts, and the overall structure play together. Metal bodies need enough yield strength, toughness, and ability to take low-temp hits. Polymer seats and seals? They've got to stay elastic, resist chemicals, and make up for shrinkage. Design-wise, focus on picking metal-polymer pairs that work well together, getting ball-seat clearance right, adding elastic compensation bits, and adjusting preload to cut stress from shrinking.

For example, ball hardness and seat elasticity have to match—otherwise you get dents or local leaks. The stem-body connection needs to handle shrinkage so torque gets transmitted smoothly. Structurally, don't forget about making flow paths smooth, rounding corners properly, and adding stress buffers at key spots. That way, the valve holds up when there's a thermal shock or it's being opened and closed over and over.

5. Long-Term Stability Optimization of Cryogenic Seals

How long cryogenic valve seals last depends on a few things: initial contact pressure, how many times you open and close the valve, temp swings, and fluid wearing on them. Design fixes here include segmented contact faces, reinforced back supports, and elastic preloading—these spread stress out evenly, slow down fatigue, and keep tiny cracks from growing. Also, surface finish, machining precision, and tight assembly tolerances? They make a huge difference in how uniform the seal is and how much it leaks.

Picking the right materials matters too. Polymers and elastomers have to balance low-temp stretchiness, chemical compatibility, and how they rub against metal parts—only then will they work steady for a long time. And you can't slack on quality control during manufacturing, assembly, and inspection. That's the only way to make sure the valve stays reliable in tough cryogenic jobs.

6. Operating Mechanism and Torque Management at Low Temperatures

Freezing temps change how much torque you need to operate the valve. The stem, handwheel, and body shrink differently, which can make it hard to turn—and that's a safety issue. Cryogenic valves fix this with special cryo-rated bearings, torque-balancing setups, and they pair those with anti-blowout designs. The result? You can operate the valve smoothly and consistently every time. Multi-point load spread and elastic supports also cut local stress, so seals don't wear out early or get damaged.

Watching torque changes while the valve's running is key for preventive maintenance. If something's off, adjust it right away—fix problems before the mechanical parts or seals fail. That way, the valve keeps working reliably and the system stays safe, even after lots of cold cycles.

7. Intelligent Monitoring and Remote Maintenance

Cryogenic pipeline networks are getting bigger, and the work they do is more complex. That's why real-time monitoring and remote maintenance aren't just nice to have—they're essential for long-term reliability. Stick sensors at key spots to measure pressure, temp, flow, and vibration. That way, you always know how the valve's doing. If the seat gets misaligned, flow goes weird, or temps jump suddenly, you can trigger predictive maintenance right away.

Remote monitoring uses data collection, communication networks, and trend analysis. It lets you predict when parts will wear out, figure out how much life they have left, and plan maintenance better. By combining real-time sensors with predictive tools, you stop fixing things after they break—you prevent problems before they start. That means fewer trips to check on-site, less time for workers in harsh environments, and a valve that stays stable in cryogenic conditions.
