What Ensures a Welded Filter Ball Valve Reliability

1. Impact of Welding Heat on Valve Microstructure

In the manufacturing of a high-performance filter ball valve, the heat input during welding is one of the critical factors determining structural performance and reliability. Welding inherently involves localized heating and fusion of metals, which directly affects the material's microstructure. When the weld area is exposed to high temperatures, the metal grains undergo processes such as recrystallization, growth, and phase transformation. Improper control may result in coarse grains or uneven microstructures, leading to localized hardness reduction or stress concentration, which can become potential initiation points for fatigue failure, especially under high-pressure or high-temperature conditions.

To minimize the adverse effects of welding heat, manufacturers often control heat input, welding speed, and interpass temperature to maintain uniform microstructure. Lower heat input prevents abnormal grain growth, while multi-pass welding reduces heat accumulation, preserving mechanical balance in the weld and heat-affected zone. Using alloys with good thermal stability also enhances the weld area's resistance to structural degradation.

Temperature non-uniformity during welding can also introduce thermal and residual stresses. Without proper post-weld treatment, these stresses may be released during operation, causing deformation or microcrack propagation. Therefore, some manufacturers apply local or full heat treatment after welding to balance internal stress and restore structural stability.

2. Comparison Between Welded and Threaded Filter Ball Valves

In industrial systems, both welded and threaded designs are widely used. They differ significantly in connection methods, sealing performance, and maintenance convenience. Threaded valves are easy to assemble and suited for low-pressure or temporary pipelines, while the Welded Filter Ball Valve emphasizes structural integrity and long-term reliability, particularly in high-temperature, high-pressure, or corrosive environments.

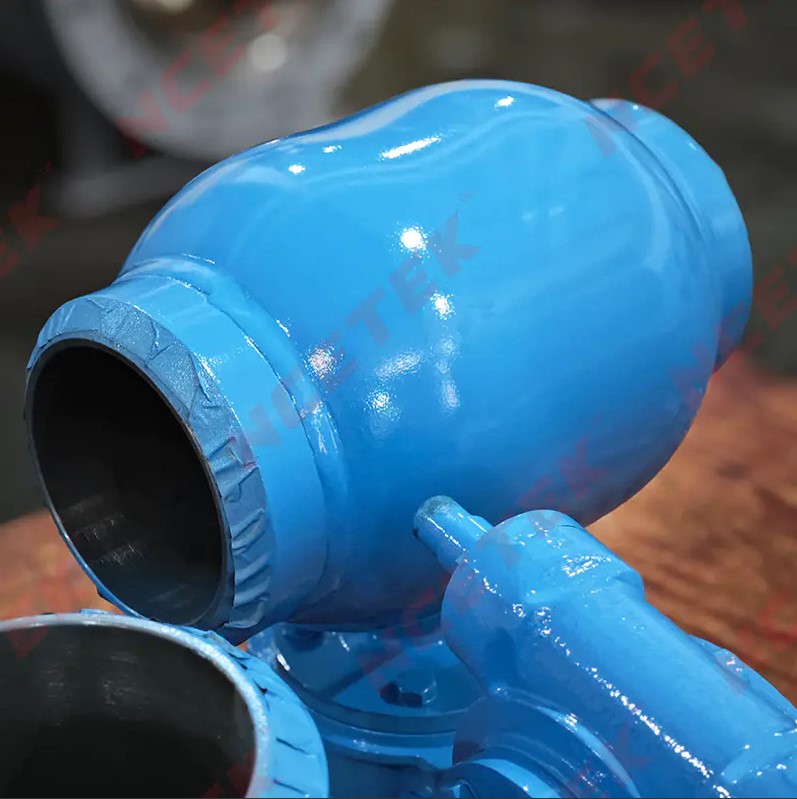

Welded structures form integrated connections, leaving virtually no gaps in the fluid path, reducing leakage and enhancing vibration resistance. Threaded connections, while convenient, may loosen under prolonged vibration or high pressure, increasing maintenance requirements.

The advantages of the Welded Filter Ball Valve lie in its integrated structure and reliable sealing, making it ideal for systems requiring continuous operation with minimal downtime. Threaded valves, while easy to install, may not achieve the same long-term reliability under demanding conditions.

3. Importance of Surface Treatment and Protection Strategies

Surface treatment plays a vital role in the manufacturing of the Welded Filter Ball Valve, affecting corrosion resistance, sealing performance, and operational smoothness. Welding can form oxide layers and microcracks on the surface, and residual stresses may develop in the weld zone. Without appropriate treatment, these small defects can become corrosion initiation points or fatigue crack sources.

Common surface treatment methods include mechanical polishing, pickling and passivation, electroplating, and coating. For stainless steel, pickling and passivation remove welding residues and restore protective oxide layers, enhancing chemical resistance. Carbon steel valves often use nickel plating or coating to improve corrosion resistance and extend service life.

Surface treatment also improves the friction characteristics of moving parts, ensuring smooth operation and reducing wear. Surface roughness consistency is particularly important under low differential pressure conditions, as it directly affects sealing reliability and flow control accuracy.

Advanced facilities may use plasma spraying, chemical vapor deposition (CVD), or other high-end methods to provide durable, wear-resistant, and corrosion-resistant surfaces. Although more costly, these treatments significantly enhance valve reliability and maintenance intervals in harsh industrial environments.

4. Significance and Control of Welding Dimensional Accuracy

Dimensional accuracy is crucial for proper valve assembly, sealing reliability, and stable flow passages. Excessive dimensional deviation can lead to stress concentration, uneven gasket pressure, or restricted ball rotation, affecting operation and long-term service life.

Weld-induced deformation is a primary source of dimensional errors. Localized thermal expansion followed by contraction can warp the valve if fixture design and control strategies are insufficient. Modern manufacturing mitigates this through segmented welding, tack welding, and controlled cooling.

Post-weld measurement is essential. Manufacturers often employ coordinate measuring machines (CMM) or laser scanning to detect deviations and make corrections. This ensures proper assembly and minimizes long-term failures caused by wear or stress concentration.

Dimensional control also affects automated welding processes. In robotic welding, slight deviations in torch trajectory or fixture positioning can compromise weld quality. Precise dimension management not only guarantees product performance but also reflects the maturity of the manufacturing system.

5. Overall Manufacturing and Operational Reliability

The Welded Filter Ball Valve integrates multiple manufacturing aspects, including material selection, welding, heat treatment, surface protection, and dimensional control. Each factor is critical to long-term reliability.

Material selection focuses on corrosion resistance, toughness, and thermal stability to ensure consistent operation. Welding procedures must carefully control heat input and cooling rates to maintain uniform microstructure and avoid stress concentration or microcracks.

Surface treatments provide additional protection against corrosion and improve the friction characteristics of moving parts, ensuring smooth operation. Dimensional accuracy ensures precise assembly with the pipeline and uniform stress distribution on sealing components, reducing leakage risk and extending service life.

Strict quality control, including weld inspection, dimensional verification, and surface examination, ensures each valve meets high reliability standards. With intelligent manufacturing, real-time monitoring of welding parameters and automated inspection reduces uncertainty, improving consistency and long-term performance.

High-performance welded filter valves are more than mechanical components—they are critical elements that guarantee reliable operation in modern industrial systems. Through comprehensive control of design, process, and quality assurance, these valves maintain stable performance under complex operating conditions, providing long service life with minimal maintenance.
