How to Choose, Use, and Maintain a Trunnion Mounted Ball Valve

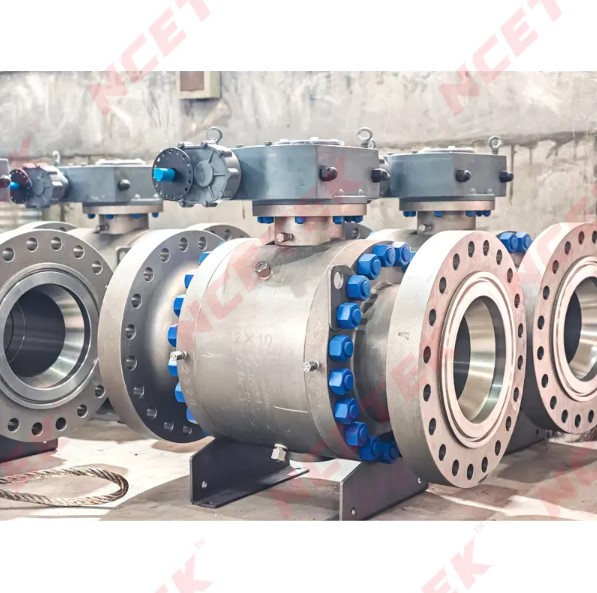

What Is a Trunnion Mounted Ball Valve

In modern industrial systems, controlling the flow of liquids or gases safely and efficiently is essential. One component widely recognized for handling demanding applications is the Trunnion Mounted Ball Valve. This valve type combines robust mechanical design with precise operation, making it a reliable choice in pipelines that require stability under pressure.

A ball valve operates by using a spherical element with a hollow passage. When the valve is open, the passage aligns with the flow direction, allowing fluid to move freely. Rotating the ball 90 degrees blocks the flow completely. What makes the trunnion-mounted version unique is its fixed support system. The ball is anchored at both the top and bottom by shafts known as trunnions. These supports maintain the ball in position, reducing stress on the seats and preventing unwanted movement even under high pressure.

Because the ball is mechanically supported, the torque needed to operate the valve remains relatively low. This not only allows smoother handling but also improves reliability over time, particularly in larger pipelines or high-pressure conditions.

Main Parts

• Body: The outer casing that connects to the pipeline.
• Ball: The round piece that opens or closes the flow.
• Seats: Soft or hard rings that seal the ball when closed.
• Trunnions: Top and bottom supports that hold the ball in place.
• Stem: Connects the ball to a handle or actuator so it can be turned.

How It Works

The trunnion-mounted design allows precise flow control with minimal mechanical effort. Rotating the actuator or handle turns the ball. When the hollow portion of the ball aligns with the pipeline, fluid passes through. Rotating the ball so the solid side faces the flow path blocks movement, providing instant shutoff. Because the ball is anchored, the sealing force remains stable regardless of pressure fluctuations. This reduces wear on internal surfaces and contributes to reliable performance over time.

How to Choose the Right Trunnion Mounted Ball Valve

Start by looking at the type of fluid your system carries. Some liquids or gases may be corrosive or contain particles that could wear down valve components. Knowing the fluid type helps you pick materials for the body and seals that can handle the conditions without damage.

Next, consider pressure and flow. Systems with higher pressure or frequent flow changes need a valve that can manage these conditions without losing seal integrity. Valves that handle repeated operations should be durable enough to last over time without needing frequent repairs.

Consider Materials

Material choice is important for the body, ball, and seats. Stainless steel, carbon steel, or other alloys are common for the body, offering resistance to corrosion and wear. Seats can be made of soft materials or metals, depending on the fluid and temperature. Choosing compatible materials prevents leaks and supports longer use.

Size and Connection Type

The valve size must match your pipeline. A valve that is too small may limit flow, while a too-large valve may affect control. Connection types, like flanges or threads, should fit your system. Proper alignment avoids stress and reduces the chance of leakage.

Choosing How to Operate the Valve

Decide whether you will operate the valve manually or with an actuator. Manual handles are simple for occasional use, while electric or pneumatic actuators allow automatic control. Actuation choice should match the valve size and torque requirements to ensure smooth operation.

Flow and Operation Needs

Think about how the valve will control flow. Some systems need simple on/off function, while others may require more precise regulation. Matching the valve to the expected flow pattern helps maintain consistent performance.

Maintenance and Accessibility

Even durable valves benefit from regular checks. Ensure the valve can be easily accessed for inspections, cleaning, and minor adjustments. This keeps performance steady and prevents unexpected problems.

Environmental and Safety Considerations

The surrounding environment affects valve choice. Exposure to moisture, dust, or chemicals may require protective coatings or coverings. Following recommended installation and handling procedures helps keep the valve safe and reliable.

Keeping Records

Recording installation, operation, and maintenance activities supports planning for inspections and replacements. Keeping notes on past issues and repairs helps improve decision-making and maintain system efficiency.

Quick Checklist for Choosing a Valve

• Check fluid type and compatibility
• Evaluate pressure and flow requirements
• Pick suitable body and seat materials
• Match valve size to pipeline diameter
• Decide manual or automatic operation
• Consider flow control needs
• Plan for maintenance and inspections
• Account for environmental and safety factors

Choosing the right Trunnion Mounted Ball Valve ensures reliable flow control, reduces the risk of leaks, and supports efficient operation. Careful selection at the start makes a system easier to manage and keeps it running safely for a longer period.

How to Maintain a Trunnion Mounted Ball Valve

Once you have chosen and installed a Trunnion Mounted Ball Valve, proper maintenance is essential to ensure smooth operation and long service life. Even though these valves are durable, regular care can prevent leaks, reduce wear, and keep the system functioning reliably.

Routine Inspection

Regular visual checks help detect early signs of wear or damage. Look for surface corrosion, dirt buildup, or unusual residue around the valve body. Cleaning the external surface with a soft cloth can help maintain its condition. Avoid using harsh chemicals that may affect internal coatings or seals.

Lubrication

Moving parts require occasional lubrication to reduce friction and ensure smooth rotation. Apply a thin layer of compatible lubricant to the stem and bearings. Excessive lubrication can attract dust and debris, so it is better to use only what is necessary. Proper lubrication helps extend the valve's operational life and makes manual or automated operation easier.

Checking Seals and Seats

The seats and seals inside the valve create the barrier that prevents leaks. Over time, they may harden, crack, or lose elasticity. Periodic inspection can identify these issues early. If any deformation is observed, replacing the seals promptly keeps the valve functioning reliably. Using materials compatible with the system's fluid and temperature is essential for effective sealing.

Stem and Actuator Inspection

The stem connects the handle or actuator to the ball. Check that the stem rotates smoothly without resistance. If it feels stiff, it may indicate debris inside or minor misalignment. Gently moving the stem during inspection can help identify these problems. For automated systems, ensure the actuator responds correctly and moves the valve fully in both directions.

Cleaning the Interior

Residue or buildup inside the valve can reduce flow efficiency and affect sealing. When the system is safely depressurized, clean internal surfaces with recommended solutions or mild detergents. Avoid using tools that can scratch the ball or seats. Rinsing and drying the valve properly before reassembly prevents moisture-related corrosion.

Establishing a Maintenance Schedule

Keeping a record of inspections and maintenance helps track wear patterns and plan replacements before issues occur.

Environmental Considerations

The surrounding environment can impact valve performance. Excess moisture, dust, or chemical exposure may accelerate wear. Installing protective covers, shields, or drainage solutions can reduce environmental effects. Keeping the pipeline and valve area clean also supports longer service life.

Safe Handling Practices

Safety should always come first. Never attempt maintenance while the system is under pressure. Depressurize and isolate the valve before removing any components. Wearing protective gear and following standard safety procedures prevents accidents during inspection, cleaning, or repair.

Operational Tips

• Avoid leaving the valve partially open for long periods, as uneven pressure on the ball can cause wear.
• Periodically cycle the valve to ensure smooth movement and prevent sticking.
• Flush the system before switching fluids to prevent contamination or buildup.
• Check nearby pipeline alignment, as vibration or misalignment may affect the valve's performance.

Maintaining clear records of inspection, cleaning, and any part replacements supports preventive maintenance. Over time, this helps operators notice recurring issues, adjust schedules, and maintain reliable system performance.

Storage During Downtime

If the valve will not be in use for an extended period, store it in a dry, clean area. Cover open ends to prevent dust and apply a thin layer of protective oil on exposed surfaces. Proper storage preserves seals and prevents corrosion.

Routine attention, careful cleaning, and timely inspections ensure that a Trunnion Mounted Ball Valve continues to operate safely and efficiently. By following structured maintenance practices, operators can reduce unexpected downtime, improve flow control, and maintain system reliability. Regular care forms the foundation for long-term performance in any industrial pipeline.

By learning about a Trunnion Mounted Ball Valve, understanding how to select the appropriate one, and following regular care practices, operators can maintain safe and reliable flow control. Proper handling and maintenance help reduce wear and avoid operational issues, supporting steady performance in pipelines. Following these guidelines ensures that industrial systems can operate efficiently while keeping maintenance manageable and predictable.
